- Place of Origin: CHINA
- Brand Name: FARINA
- Model Number: E71T-GS
- Weight: 1.000 kg

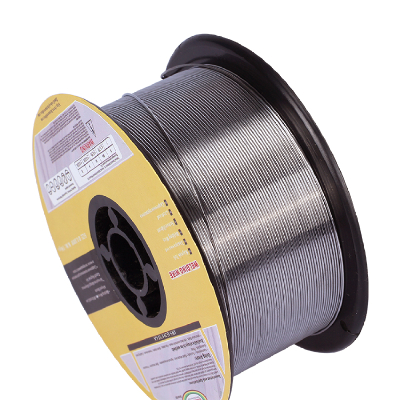

FLUX CORED WIRE
(Carbon Steel Self-shielded FCW)
FRN-YT71T-GS
AWS A5.20 E71T-GS
GB/T10045 E501T-GS
JIS Z3313 YFW-S50GB
EN ISO 17632-B T49 Z TG-1NS
Introduction: self-shielded flux cored wire for single pass applications in all
positions. Arc is smooth and soft, good welding performance, full slag covering
and easy slag removal.
Uses: FRN-YT71T-GS is suitable for welding of mild on bridge, oil production
platform, petroleum pipeline and its dabber
- Place of Origin: CHINA
- Brand Name: FARINA
- Model Number: E71T-GS
- Weight: 1.000 kg
Typical Chemical Composition of all weld metal （%） （100%CO2） | ||||||
C | Mn | Si | P | S | Al | Shielded Gas |
0.09 | 0.88 | 0.34 | 0.012 | 0.009 | 1.32 | None |
Typical Mechanical Properties of Deposited Metal (100%CO2 ) | ||||
Yield Strength ReL(Mpa) | Tensile Strength Rm(Mpa) | Elongation δ5 (%) | Temperature (℃) | impact energy KV2 (J) |
-- | 580 | -- | 128 | |
Reference Current (DC ) | |||
Wire Diameter(mm) | φ1.2 | φ1.6 | |
Current Range(A) | F H FF | 80～120 | 160～280 |
VD | 200～300 | 250～300 | |
Packing terms | |||||
Diameter | 0.8mm | 0.9mm | 1.0mm | 1.2mm | 1.6mm |
Plastic spool 1kg D100mm | √ | √ | √ | √ | √ |
Plastic spool 1kg D200mm | √ | √ | √ | √ | √ |
Plastic spool 1kg D270mm | √ | √ | √ | √ | √ |
Why chose us:
1.we are a factry of welding wire since 1993.
2.we are a only listed company of welding in JINAN.
3.We have the ABS,CCS,CE,DNV-GL and ISO cetificate.
4.our products are best-selling in the world specially in Russia.
5.We have registered trademarks in foreign countries,like:Iran,Poland,America,Italy and so on.
