- Place of Origin: CHINA
- Brand Name: FARINA
- Model Number: E71T-1
- Weight: 15.000 kg

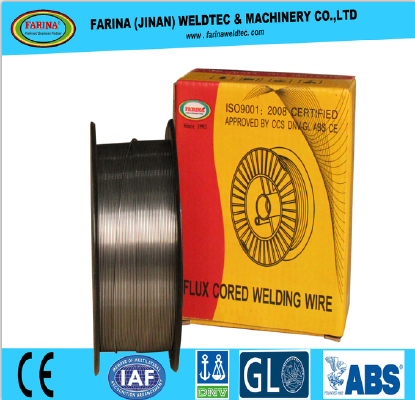

Flux cored welding wire
(Carbon steel FCW)
FRN-YT501T-1
GB/T10045 E501T-1/9
AWS A5.20 E71T-1C/9C
JIS Z3313 YFW-C50DR
EN ISO 17632-B T 49 0 TI-1CA-U
Introduction: FRN-YT501T-1 is a kind of titania type CO2 gas-shielded
flux-cored welding wire for low-carbon steel and 490MPa high strength
steel.. It has excellent welding performance, soft and stable arc, fewer
spatters, good slag detachability and beautiful appearance of weld.
It has excellent low temperature toughness, good crack-resistance and
stable and reliable inherent quality.
Uses: Used for welding structures made of carbon steel and low-alloy
structural steel with tensile strength higher than or equal to 490MPa.
Most widely used for welding some key structures like shipbuilding,
mechanical manufacture, pressure vessels, boilers, petroleum machinery,
chemical machinery, hoisting machinery, etc.
- Place of Origin: CHINA
- Brand Name: FARINA
- Model Number: E71T-1
- Weight: 15.000 kg
Typical Chemical Composition of all weld metal (%) (100%CO2) | |||||
C | Mn | Si | P | S | other |
0.05 | 1.35 | 0.45 | 0.012 | 0.010 | -- |
Typical Mechanical Properties of Deposited Metal (100%CO2 ) | ||||
Yield Strength ReL(Mpa) | Tensile Strength Rm(Mpa) | Elongation δ5 (%) | Temperature (℃) | impact energy KV2 (J) |
480 | 580 | 27 | -20 | 128 |
Reference Current (DC ) | ||||
Wire Diameter(mm) | φ1.2 | φ1.4 | φ1.6 | |
Current Range(A) | F | 120~300 | 150~380 | 180~420 |
H | 120~280 | 150~320 | 180~350 | |
VU OH | 120~260 | 150~270 | 180~280 | |
VD | 200~300 | 220~300 | 250~300 |
Packing terms | |||||
Diameter | 0.8mm | 0.9mm | 1.0mm | 1.2mm | 1.6mm |
Plastic spool 1kg D100mm | √ | √ | √ | √ | √ |
Plastic spool 1kg D200mm | √ | √ | √ | √ | √ |
Plastic spool 1kg D270mm | √ | √ | √ | √ | √ |
