- Place of Origin: CHINA
- Brand Name: FARINA
- Model Number: 2.5mm 3.2mm 4.0mm,5.0mm
WELDING ELECTRODE
FRN-J421
AWS A5.1 E6013
GB/T 5117 E4313

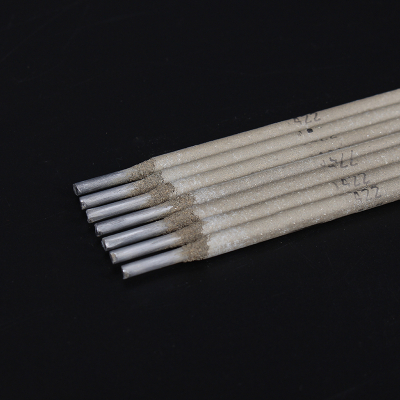

Introduction: FRN-J421 is a kind of carbon steel electrode with titania
type coating. AC/DC. All-position welding. It has excellent welding performance,
excellent operating performance, easy reignition, stable arc and beautiful
appearance of weld.
Uses: For welding low-carbon steel structures, especially suitable for
welding on thin plates and cosmetic welding which requires the weld beads
to be beautiful and glossy.
Our products include:AWS E6013,E7018,E7016,E6011,E6010,E308,E308l-16,E316L-16.
- Place of Origin: CHINA
- Brand Name: FARINA
- Model Number: 2.5mm 3.2mm 4.0mm,5.0mm
| Typical Chemical Composition of welding electrode (%) | ||||||
| C | Mn | Si | S | P | Ni | other |
| 0.087 | 1.12 | 0.58 | 0.012 | 0.021 | 0.011 | Cr:0.028 Mo:0.007 V:0.016 |
Typical Mechanical Properties of Deposited Metal | ||||
Yield Strength ReL (Mpa) | Tensile Strength Rm(Mpa) | Elongation δ5(%) | Temperature (℃) | Impact Energy KV2(J) |
| 560 | 450 | 32 | -20 | 150 |
| Size and recommended current range | |||||
| Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
| Welding Current(A) | -- | 60-100 | 80-140 | 110-210 | 160-230 |
Why chose us:

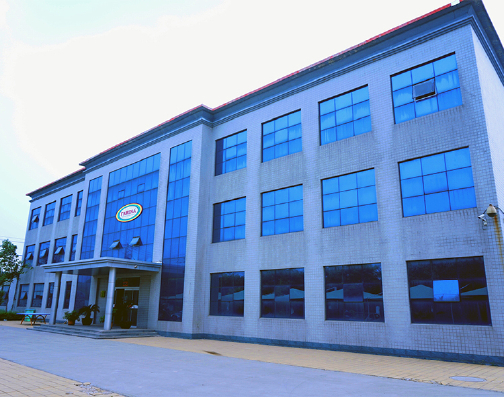

1.we are a factry of welding wire since 1993.
2.we are a only listed company of welding in JINAN.
3.We have the ABS,CCS,CE,DNV-GL and ISO cetificate.
4.our products are best-selling in the world specially in Russia.
5.We have registered trademarks in foreign countries,like:Iran,Poland,America,Italy and so on.
FAQ:
Payment term:30% for prepayment the balance after the sight of B/L.
Delievery time:about two weeks after the prepayment.
MOQ:20TONS
SKYPE:wang.alice9
Mobile:0086-13589142756
Mail:alice@farinaweldtec.com
